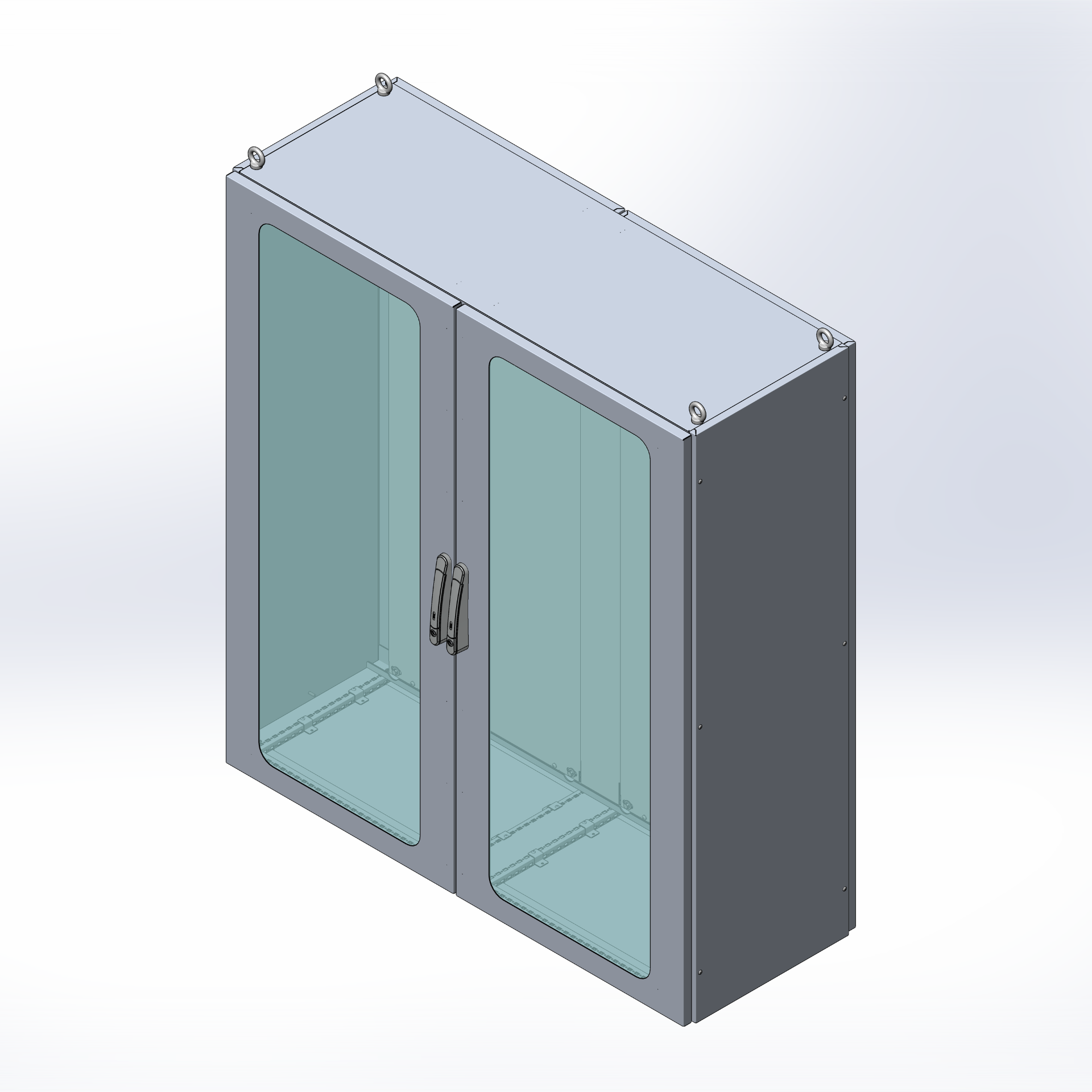

FRV - DOUBLE GLASS DOOR IP66

The FRV range of stainless steel modular cabinets is made in compliance with the most recent international standards and according to deeply innovative constructive concepts of protection, solidity and design.

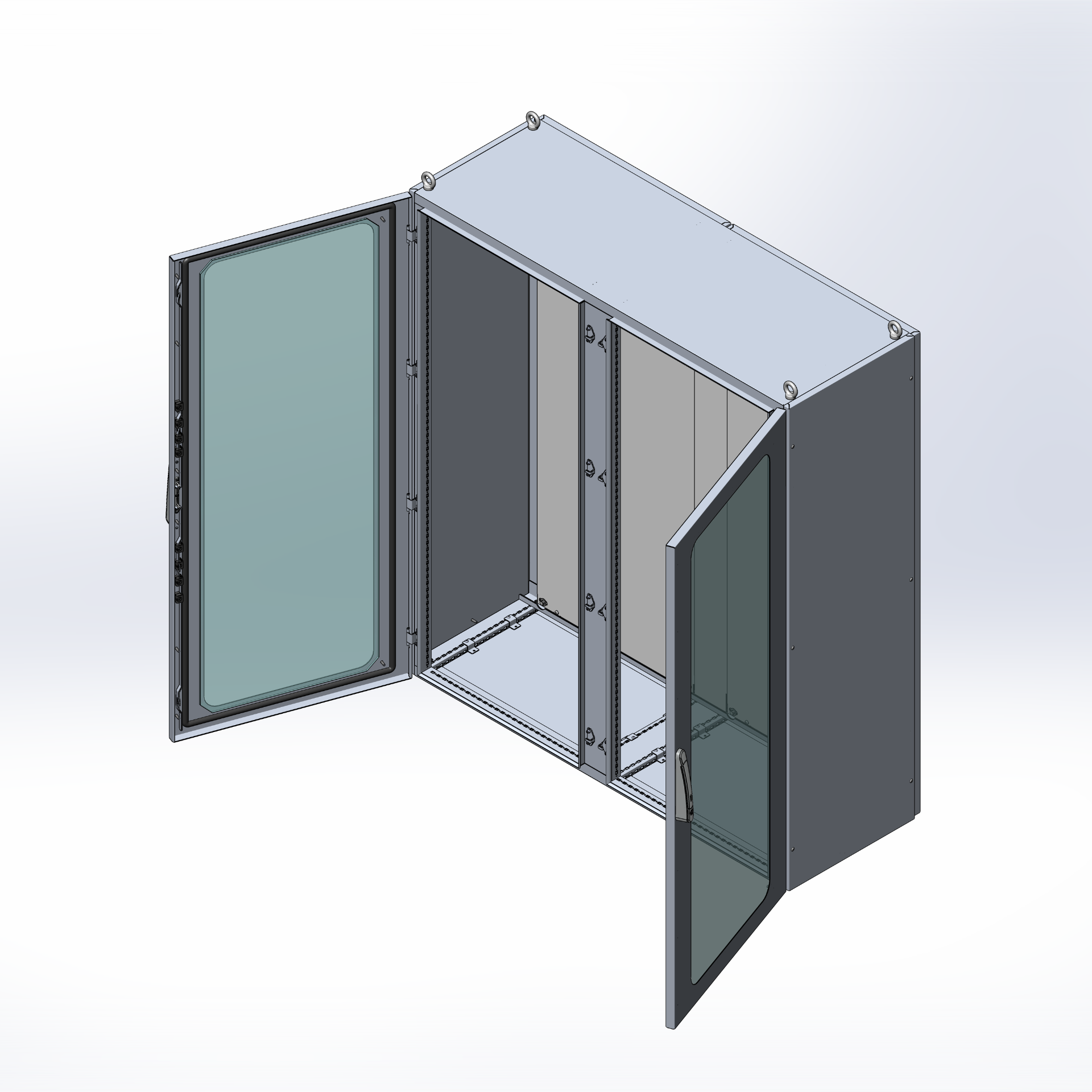

W=1200mm – IP66, 2 single doors W=600mm independent from one another, with welded central pillar.

W=1600/2400mm – IP66, 2/3 single doors W=800mm independent from one another, with welded central pillar.

The IP66 rating, the removable rear side also replaceable with a door, and the scotch-brite finish characterize the FRV series as the ideal solution for applications in aggressive environments such as in the food, chemical, and pharmaceutical industries, or for applications in outdoor environments.

Upon request, it is possible to supply our FRV glass door cabinets tailormade according to the costumer’s needs.

Every cabinet of the ARMOD range comes with Fe/zn mounting plate (code PI…), removable cable entry flange and lifting eyebolts as standard and included in the cabinet’s price.

TECHNICAL SPECIFICATIONS



Material: AISI 304L stainless steel 15/10 – AISI 316L stainless steel 15/10 upon request

Method of installation: floor-mounted

Protection degree: IP66

UL label upon request – Nema Type 1, 12, 4, 4X

Protection degree: IK10

Installation: indoor/outdoor

Standard polyurethane seal – silicone seal upon request

Door with transparent safety glass 3+3mm

Door reinforcement frame fixed with glue and hardware

Side-entry mouting plate , removable side panels, cabinet profiles with 25mm spacing drills

ACCESSORIES

  • PI – NARROW MOUNTING PLATES
  • PIFR – WIDE MOUNTING PLATES
  • PIA – PARTIAL PLATES
  • TC – INNER DOOR KITS
  • TR – 19″ RACK SUPPORT FRAMES
  • TPA – RAIN CANOPIES
  • TM – MODULAR FRAMES + MODULAR PANELS
  • FLG – DOUBLE ENTRY FLANGES
  • TS – WIRING PLAN POCKETS
  • FZ – PLINTHS
  • PL – COMPONENT SHELVES
  • PDP – FEET FOR PLINTHS
  • CF – PAIR OF SIDE PANELS
  • KU – CABINET JOINING KITS
  • PSO/PSV – HORIZONTAL/VERTICAL SEPARATION WALLS
  • BARS KITS
  • PP/PPT – PROTECTION-INSPECTION WINDOWS
  • VC – CABLE COMPARTMENTS
