CONSOLE SYSTEMS WITH SINGLE DOOR, DOUBLE DOOR AND TOP CONTROL CONSOLE SYSTEMS
The FQ range of stainless steel panel systems has been designed in compliance with the most recent international standards and according to deeply innovative constructive concepts of protection, design and solidity.
Upon request, it is possible to supply our FM/FMN panel systems tailormade according to the costumer’s needs.
Available in single door configuration up to L=1000mm, IP66.

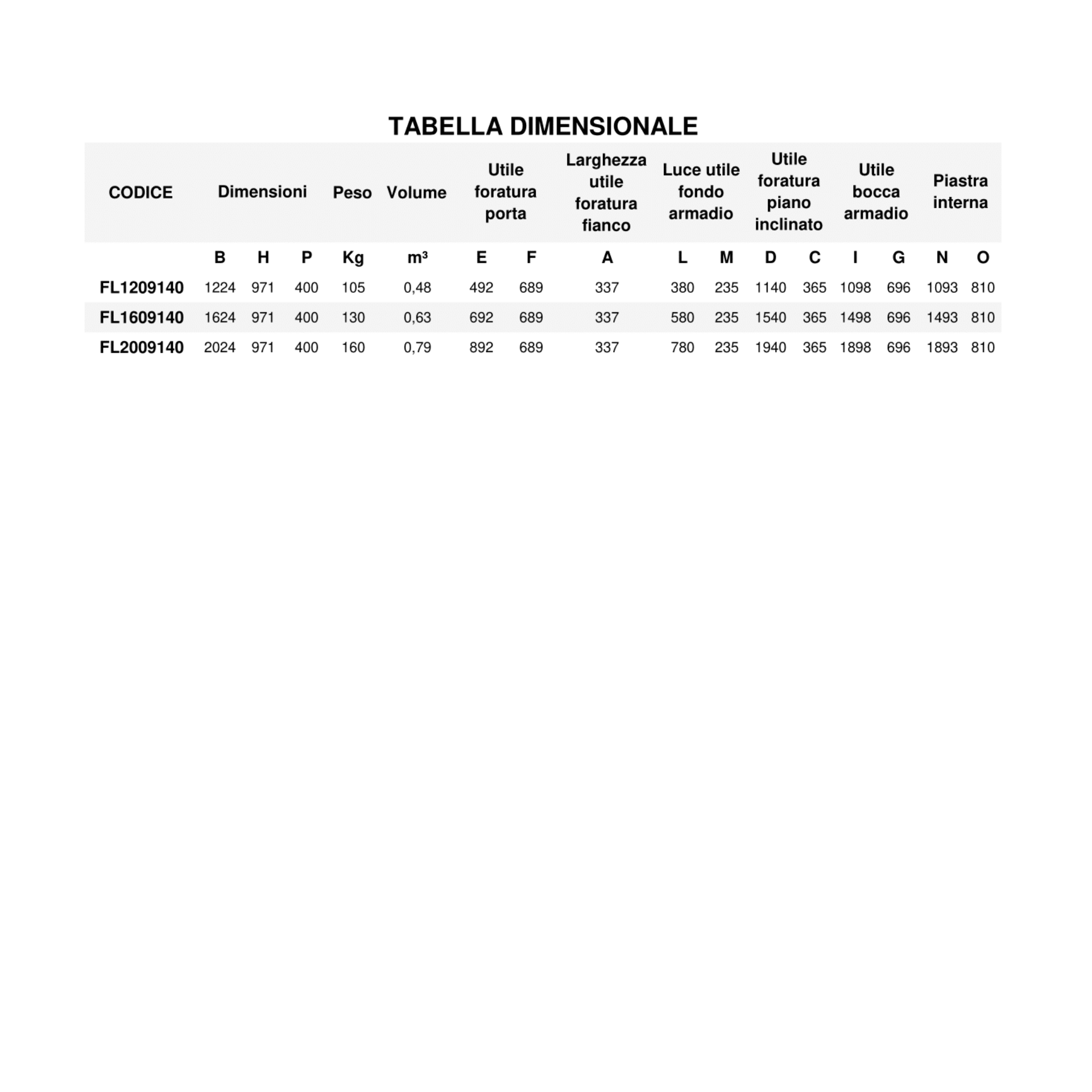

Available in double door configuration from L=1200mm to L=2000mm, IP55.

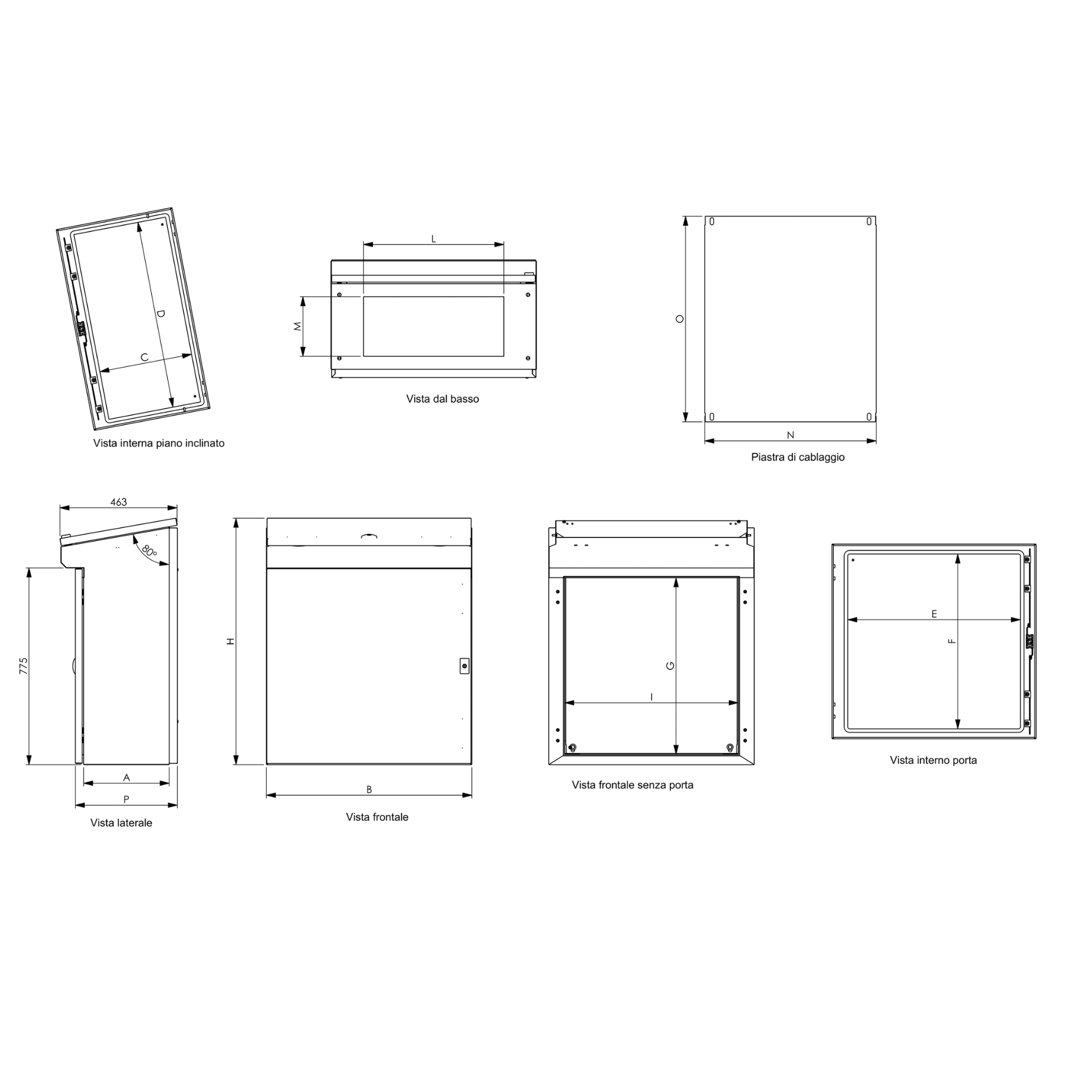

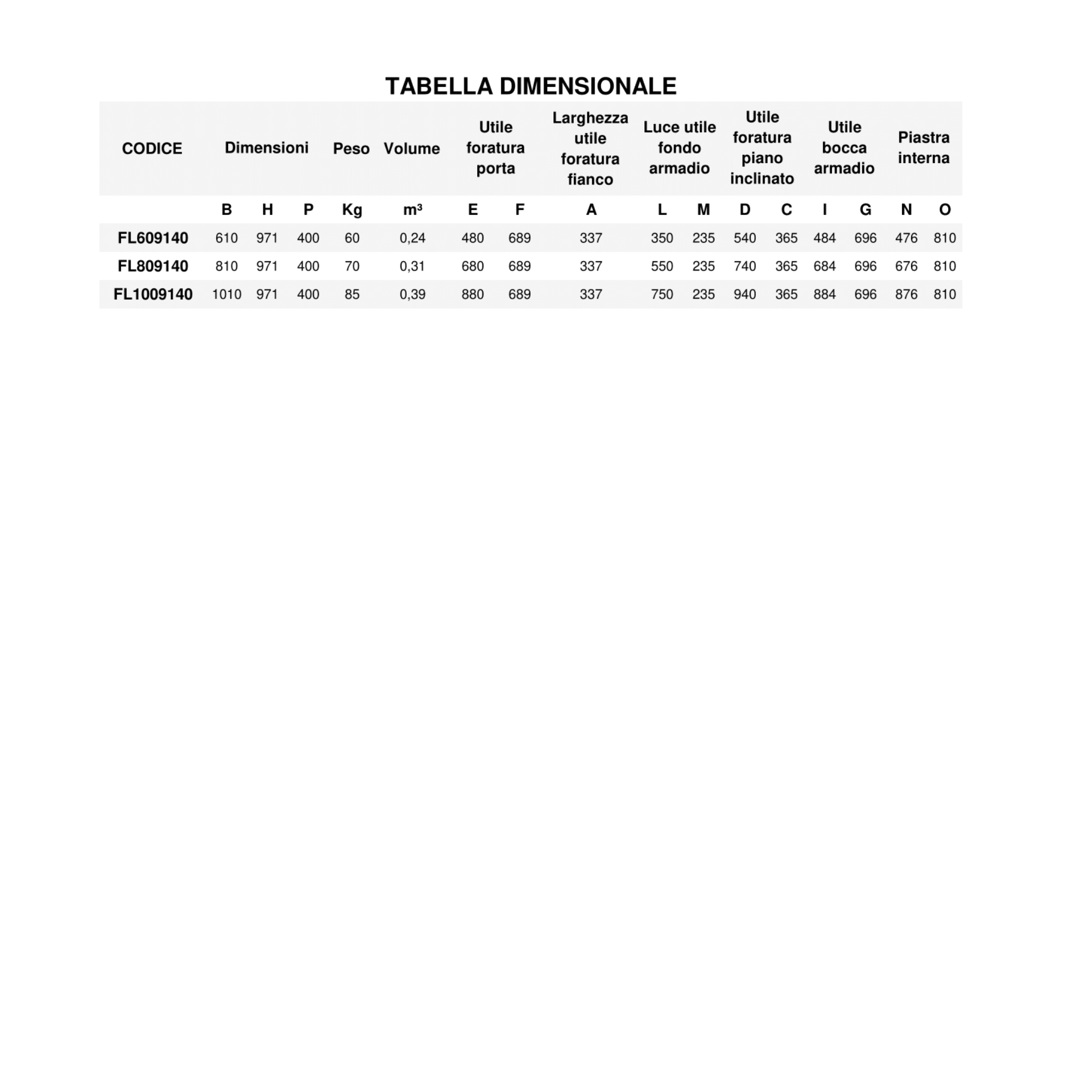

IP66 FL TECHNICAL SPECIFICATIONS
Material: AISI 304L stainless steel 15/10 – AISI 316L stainless steel 15/10 upon request
Method of installation: floor-mounted
Protection degree: IP66
Protection degree: IK10
Installation: indoor
Rear side removable and replaceable with a door.
Mounting plate fixed on adjustable rails with 25mm spacing drills.
Every console of the LOGEX FL range comes with Fe/zn mounting plate and removable blind cable entry flange as standard and included in the console’s price.
ACCESSORIES
- FZ – PLINTHS
- FLG – DOUBLE CABLE ENTRY FLANGES
- TS – WIRING PLAN POCKETS

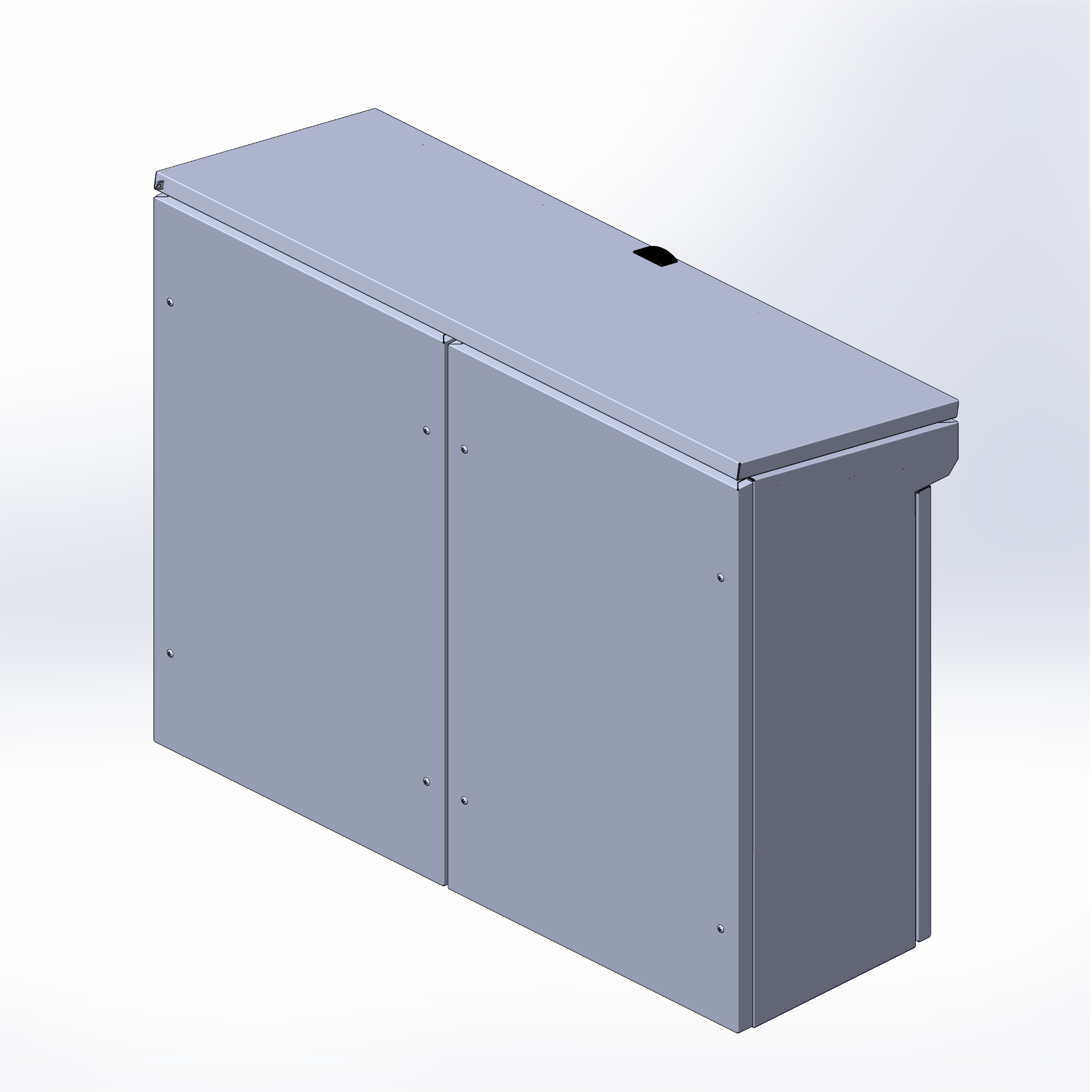

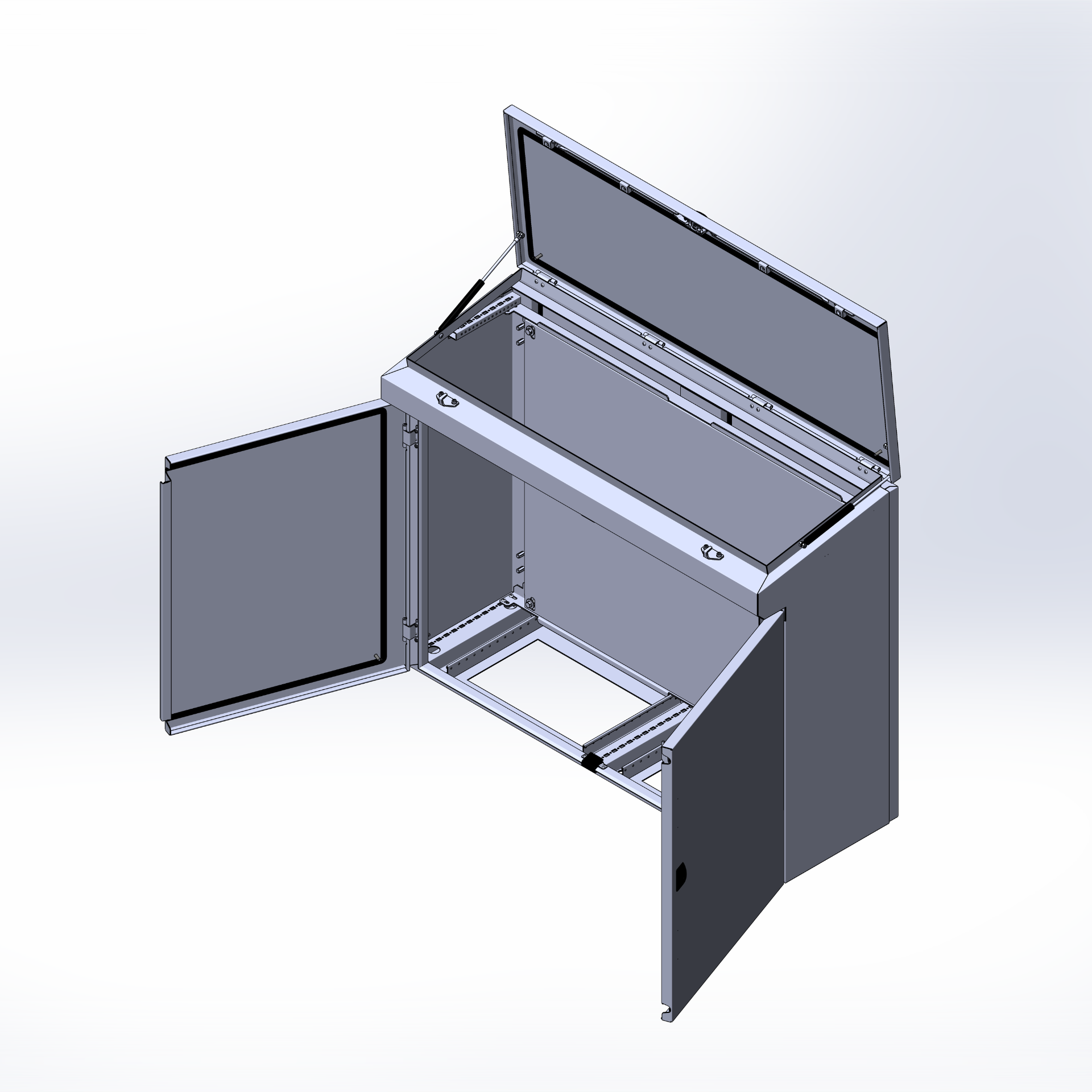

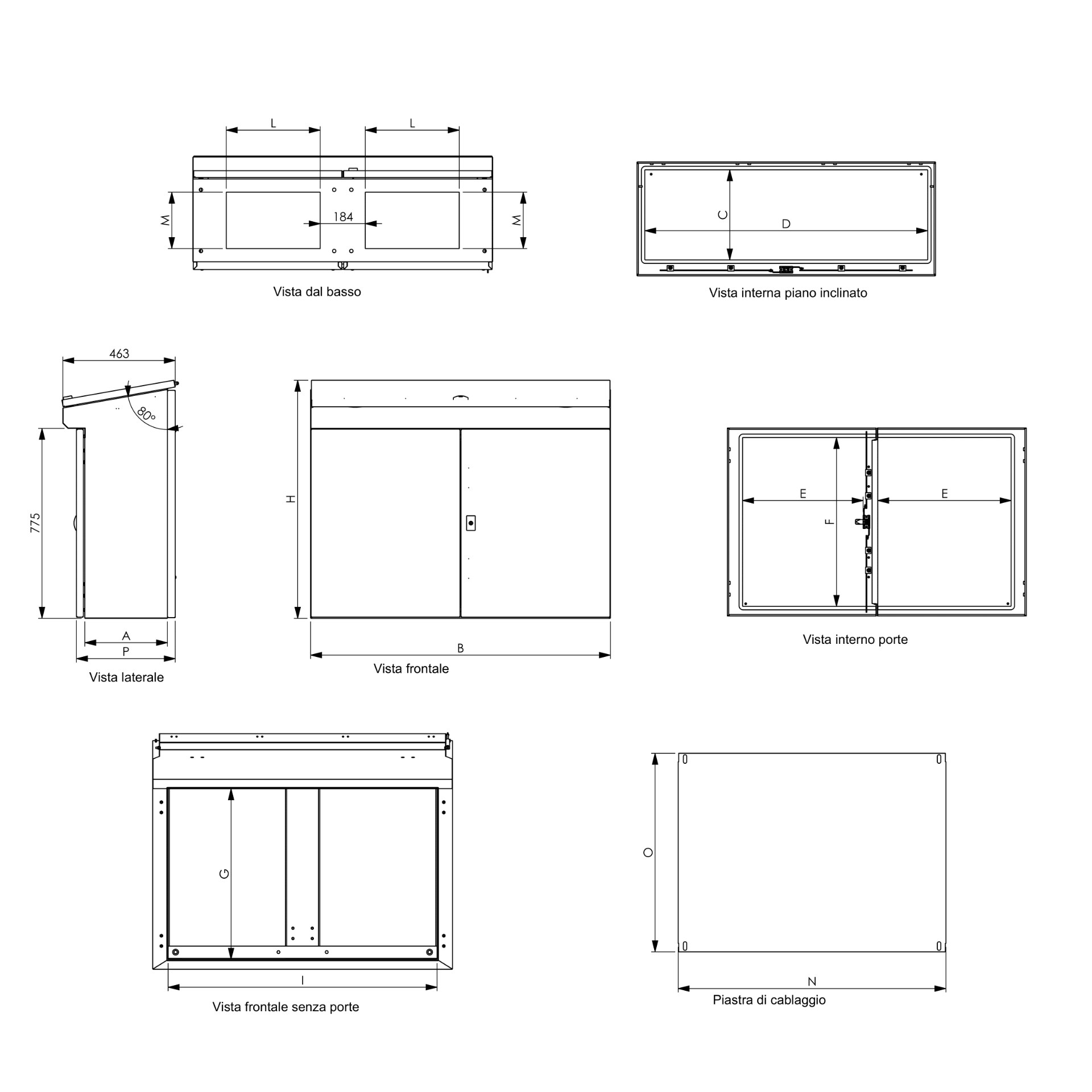

IP55 FL TECHNICAL SPECIFICATIONS
Material: AISI 304L stainless steel 15/10 – AISI 316L stainless steel 15/10 upon request
Method of installation: floor-mounted
Protection degree: IP55
Protection degree: IK10
Installation: indoor
Rear side removable and replaceable with a door.
Mounting plate fixed on adjustable rails with 25mm spacing drills.
Every console of the LOGEX FL range comes with Fe/zn mounting plate and removable blind cable entry flange as standard and included in the console’s price.
ACCESSORIES
- FZ – PLINTHS
- FLG – DOUBLE CABLE ENTRY FLANGES
- TS – WIRING PLAN POCKETS

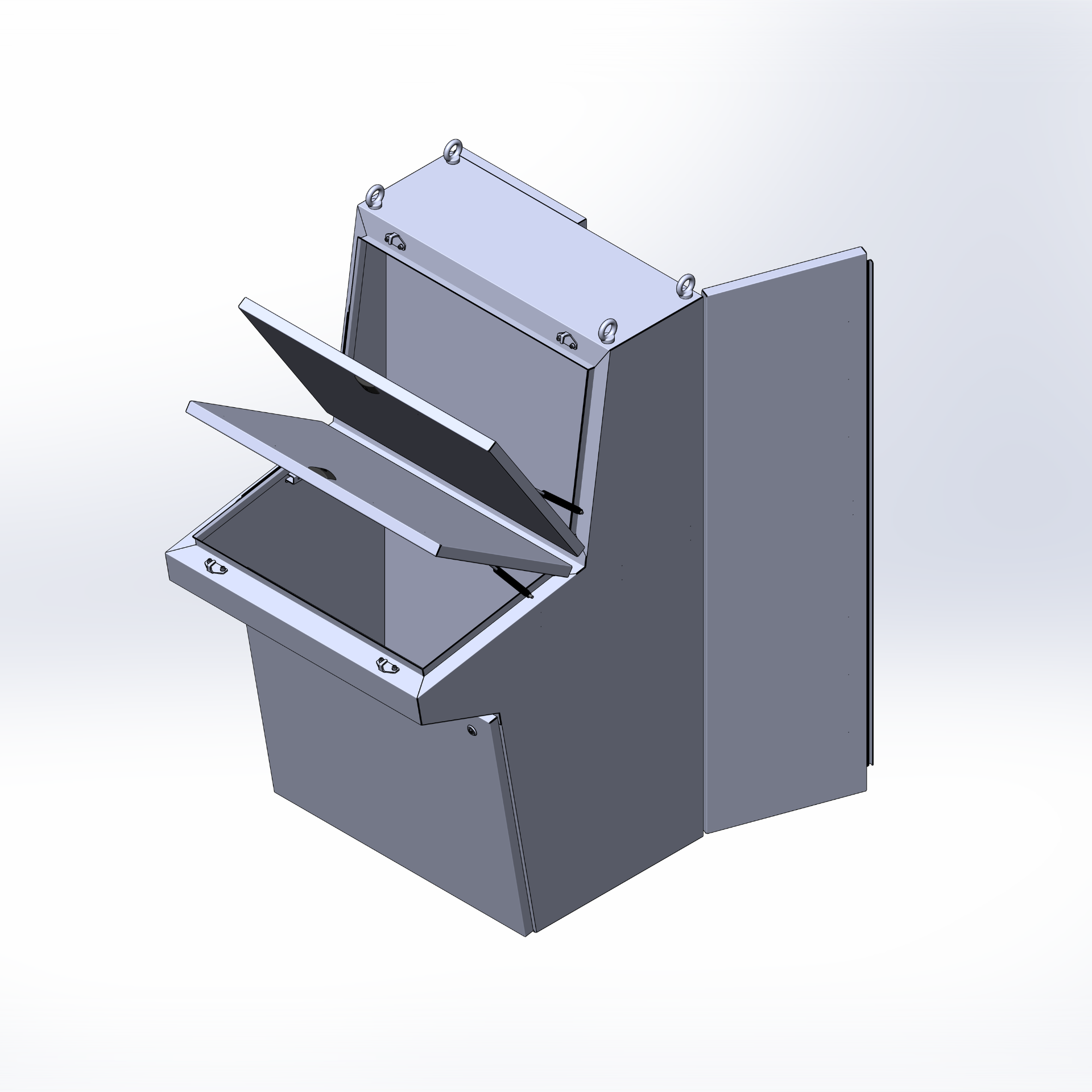

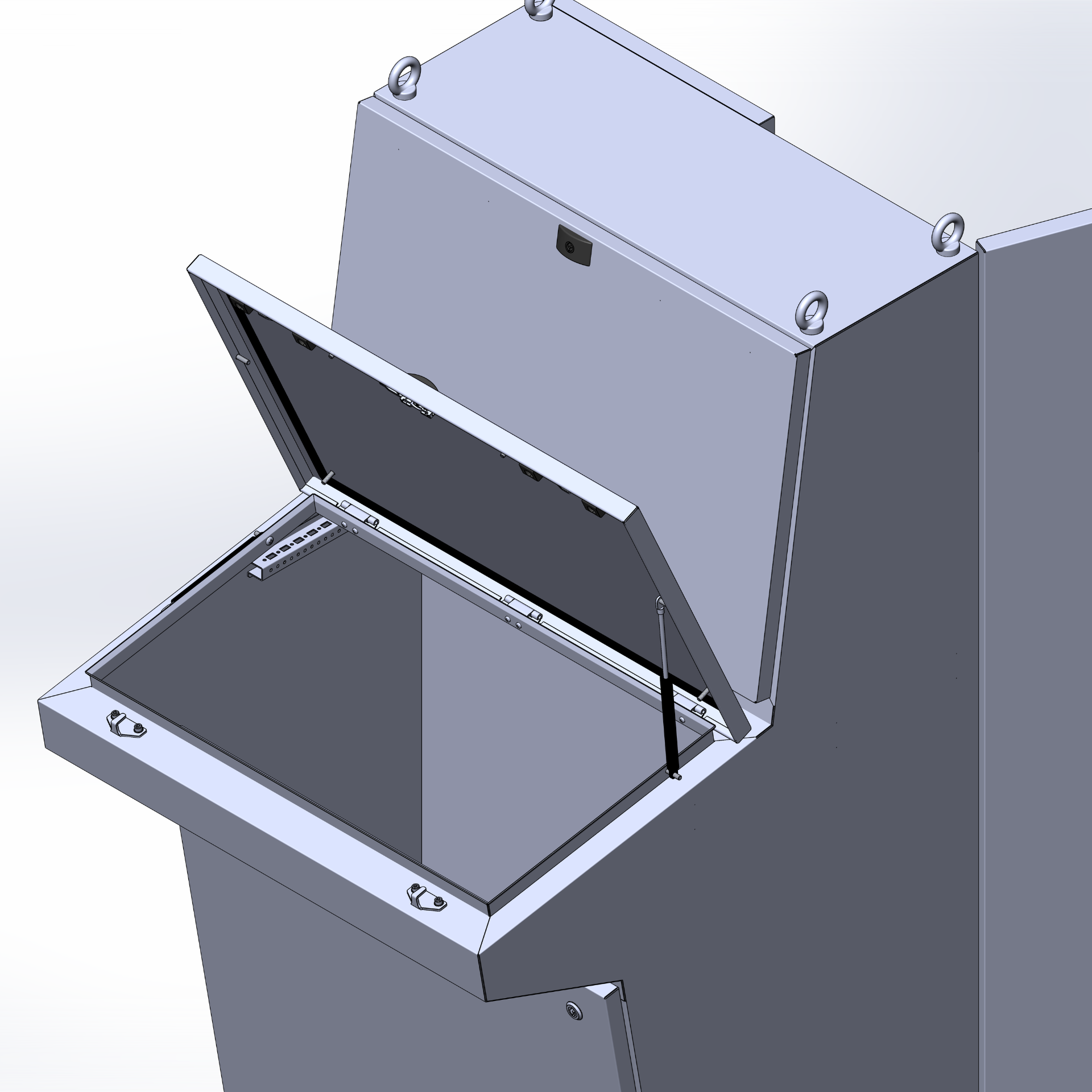

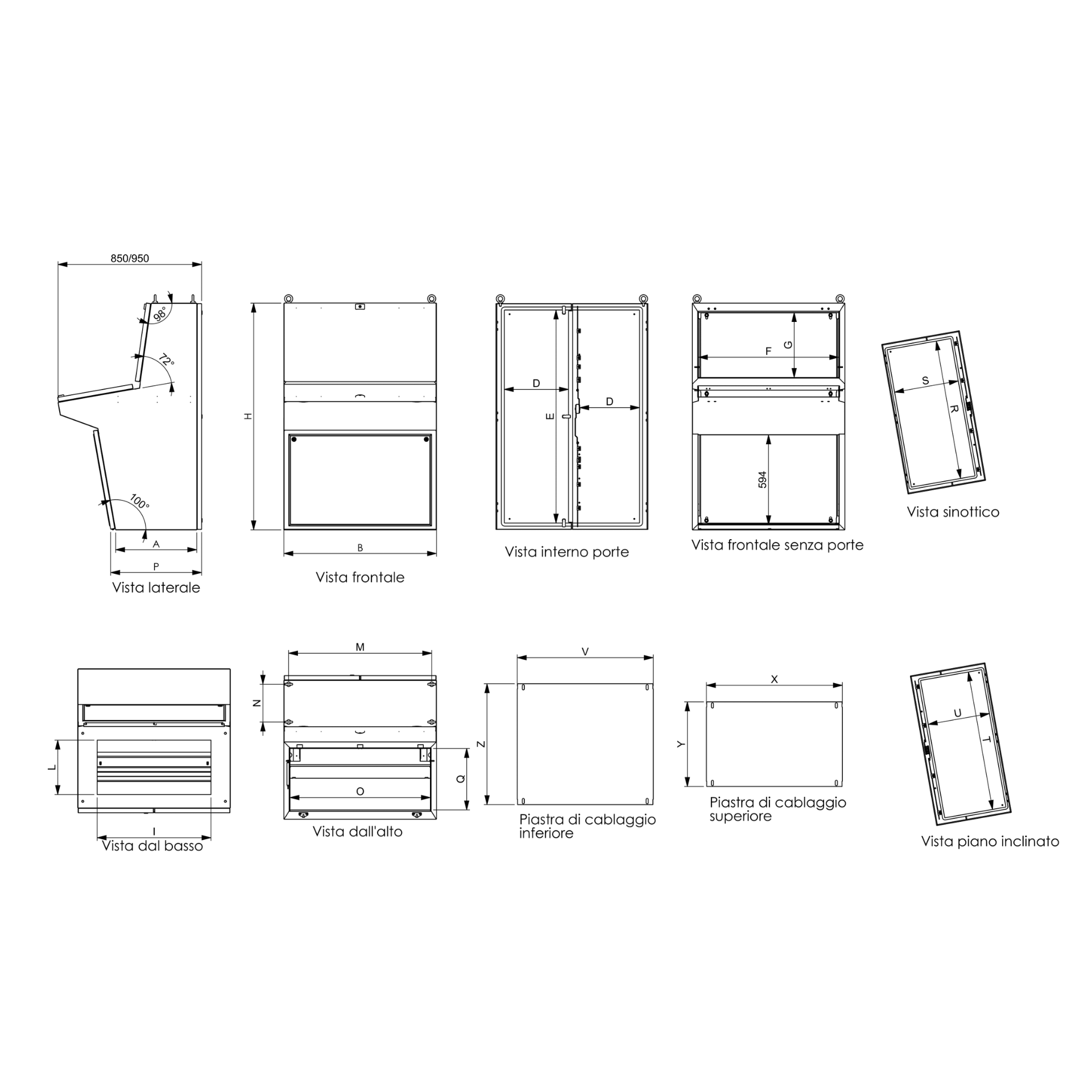

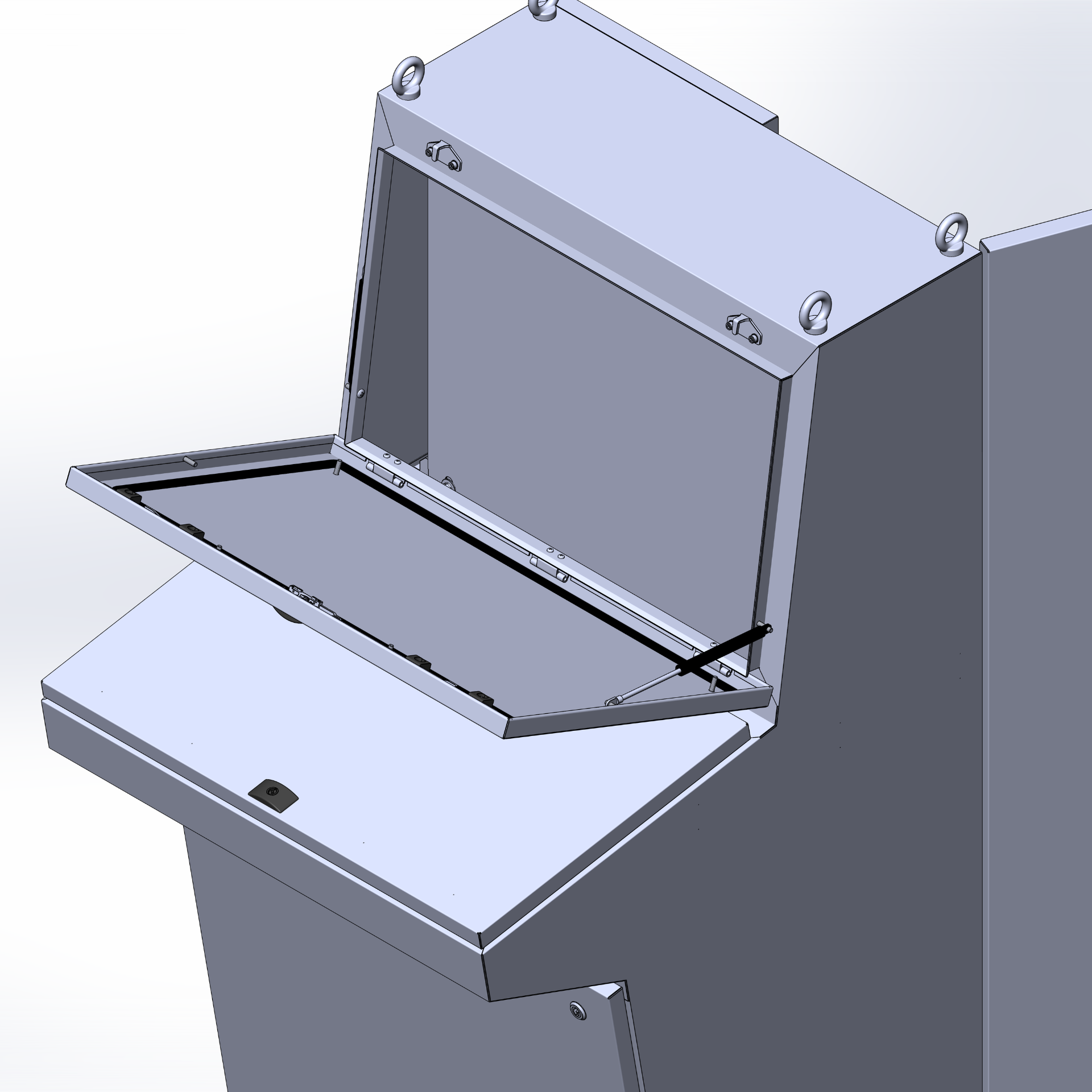

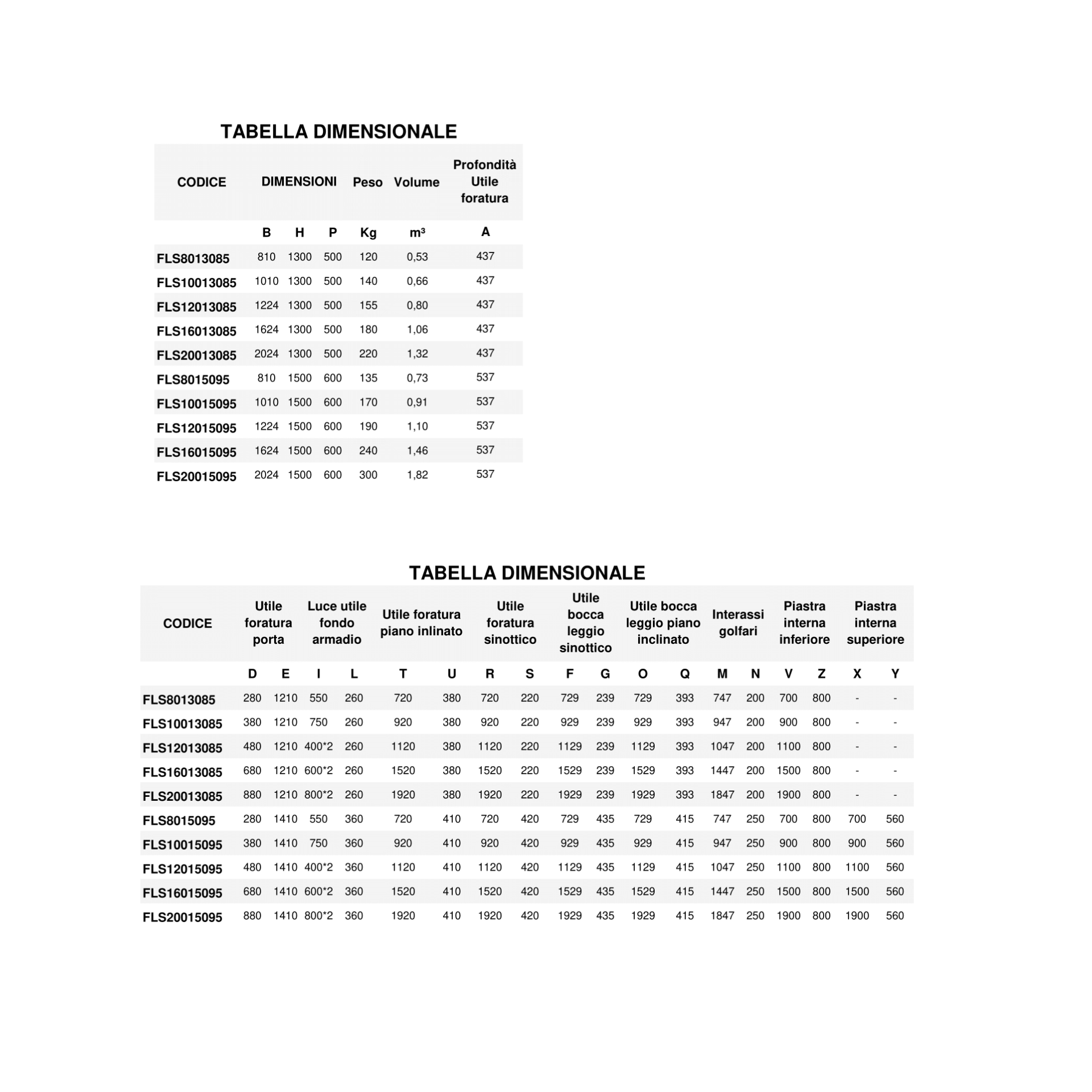

IP55 FLS TECHNICAL SPECIFICATIONS
Material: AISI 304L stainless steel 15/10 – AISI 316L stainless steel 15/10 upon request
Method of installation: floor-mounted
Protection degree: IP55
Protection degree: IK10
Installation: indoor

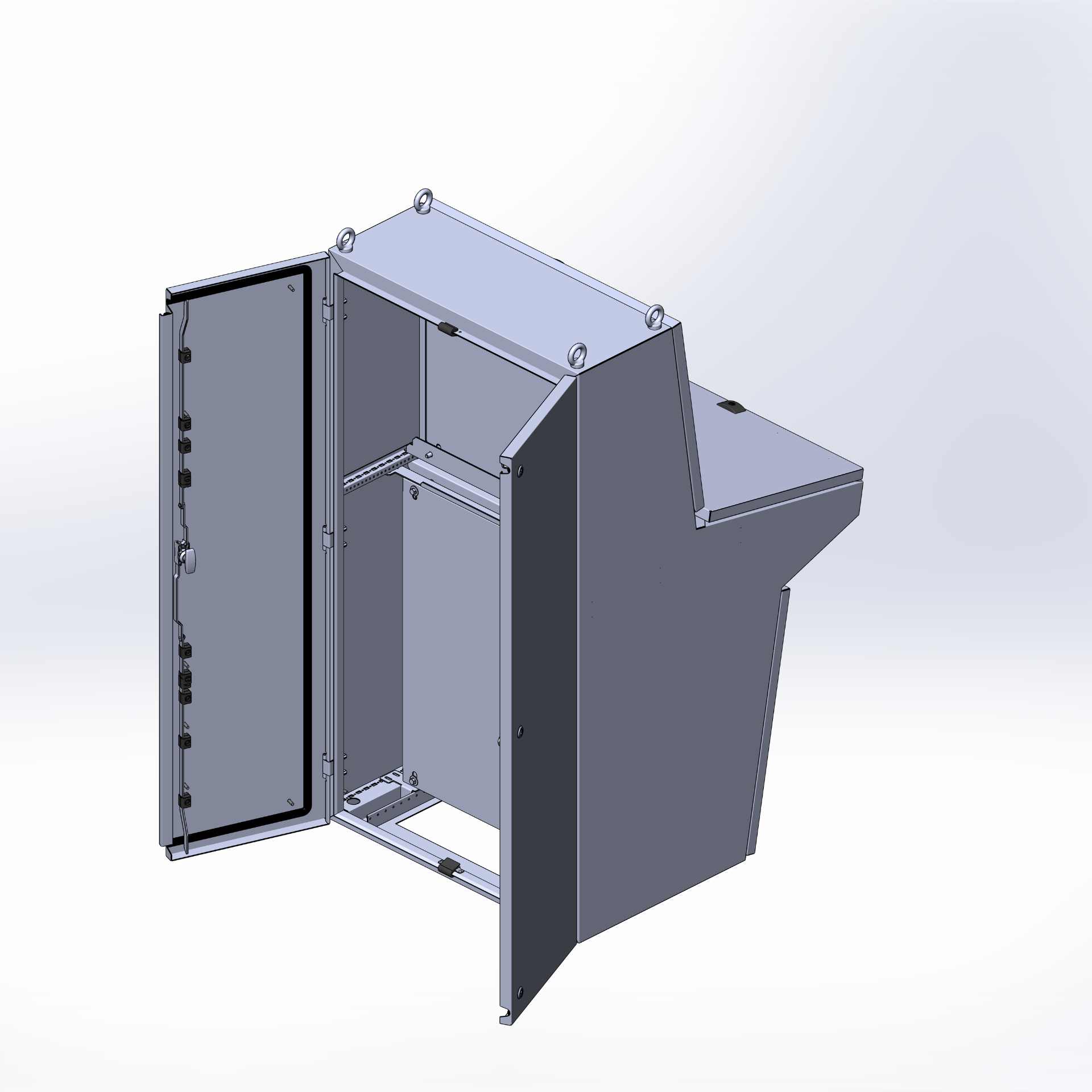

Rear side with two doors to access the back mounting plate.
Mounting plate fixed on adjustable rails with 25mm spacing drills.
Every console of the LOGEX FLS range comes with two Fe/zn mounting plate (a third mounting plate is available only for H=1500mm models), a removable blind cable entry flange and lifting eyebolts as standard and included in the console’s price.
ACCESSORIES
- FZ – PLINTHS
- FLG – DOUBLE CABLE ENTRY FLANGES
- TS – WIRING PLAN POCKETS
