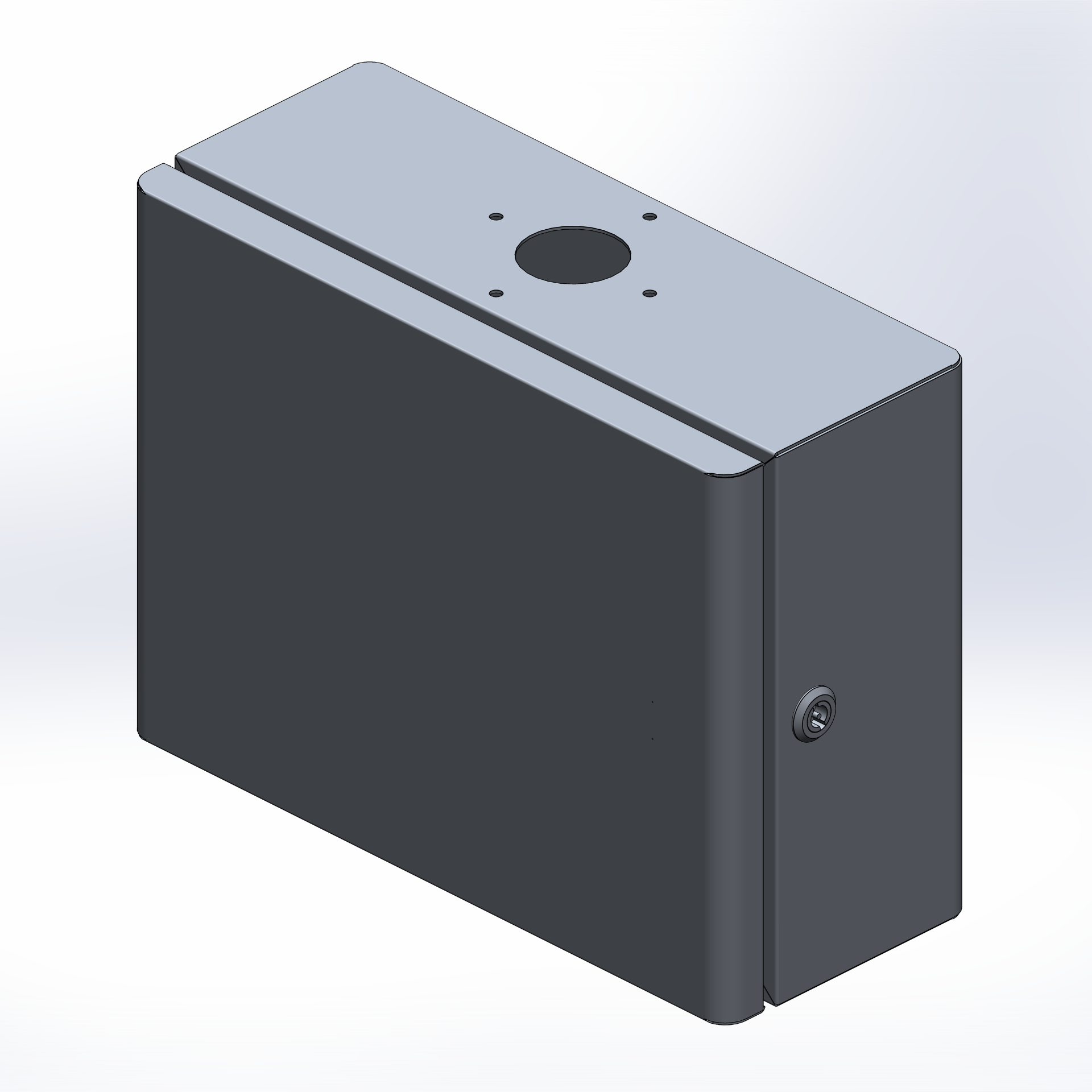

FM/FMN PANEL SYSTEMS
The FQ range of stainless steel panel systems has been designed in compliance with the most recent international standards and according to deeply innovative constructive concepts of protection, design and solidity.
Upon request, it is possible to supply our FM/FMN panel systems tailormade according to the costumer’s needs.

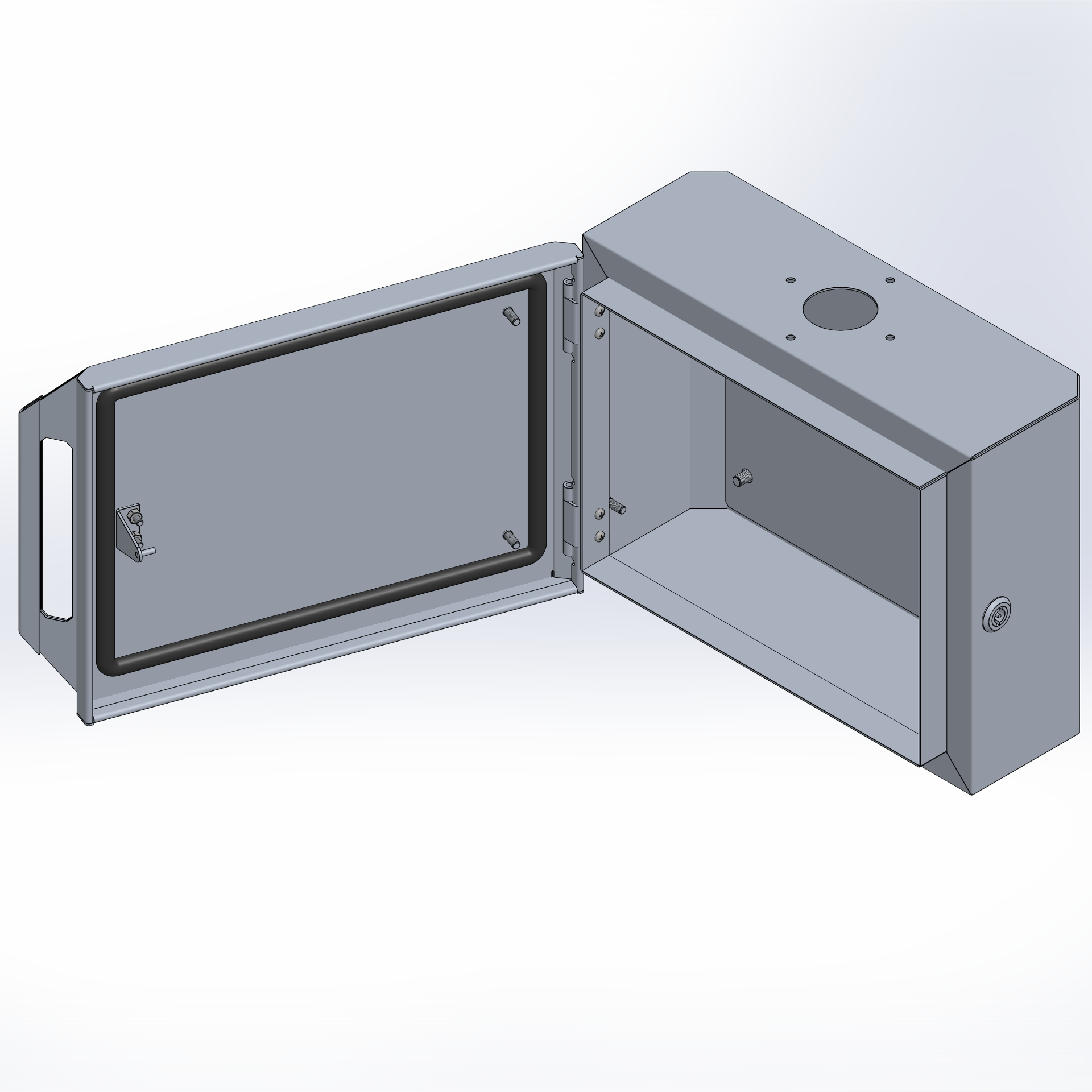

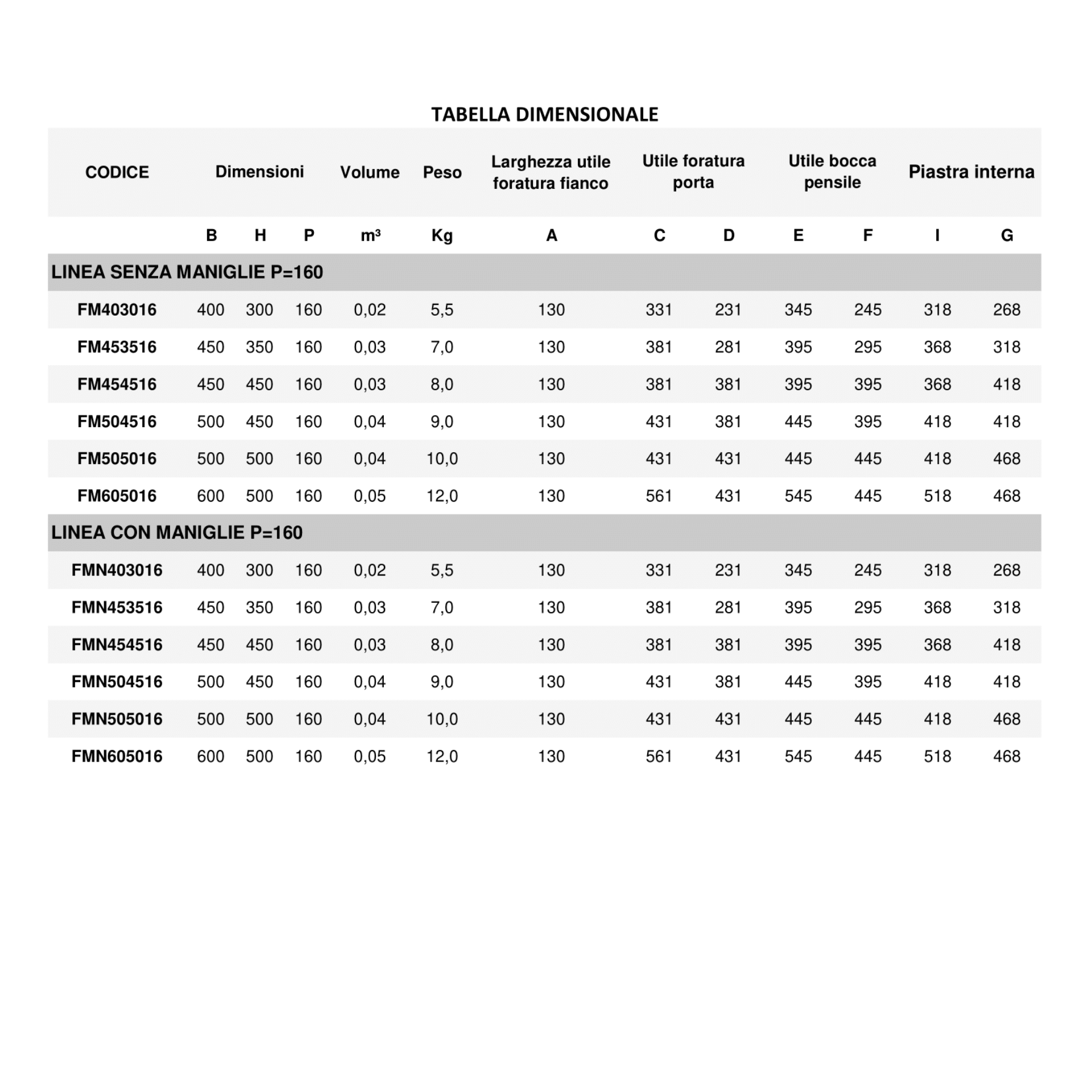

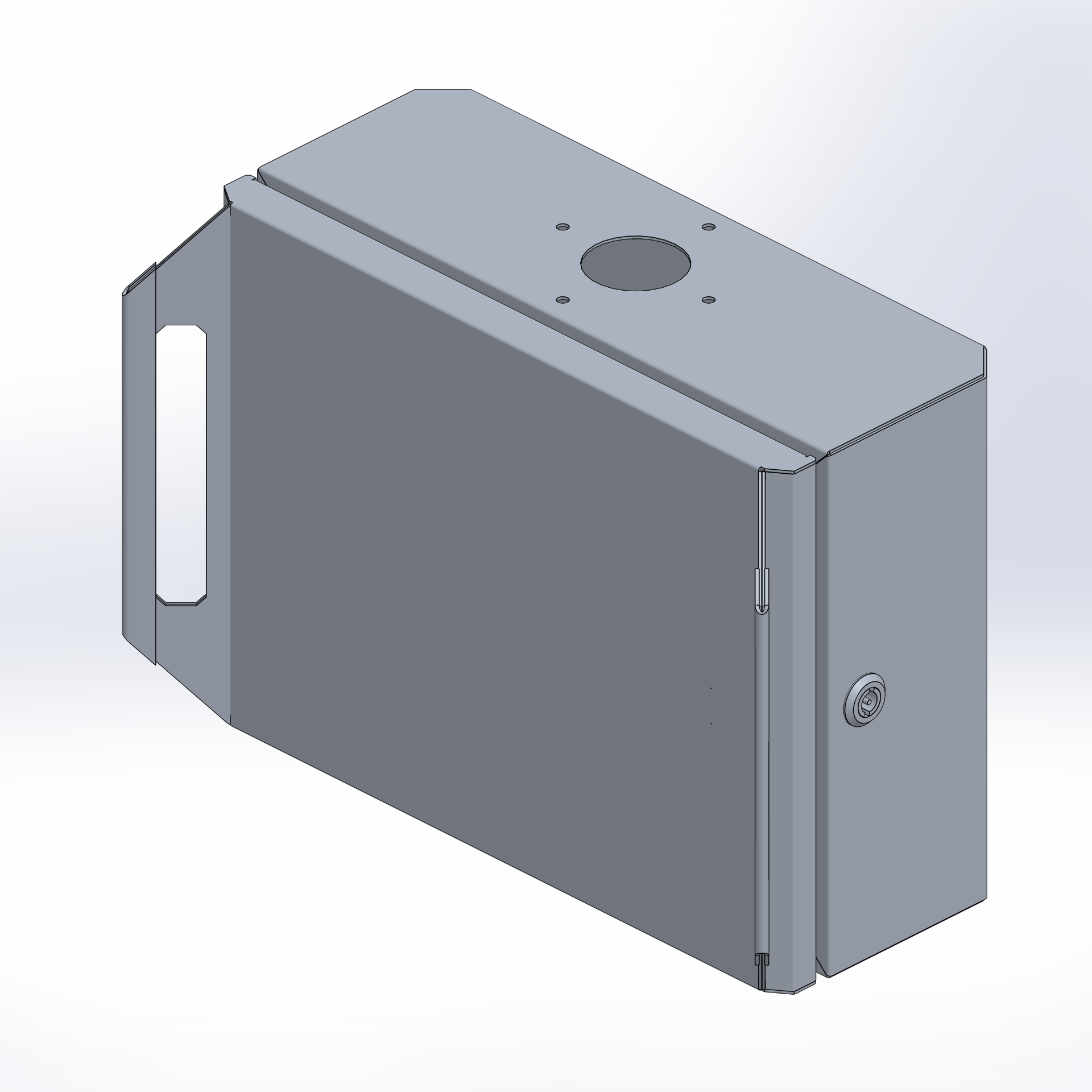

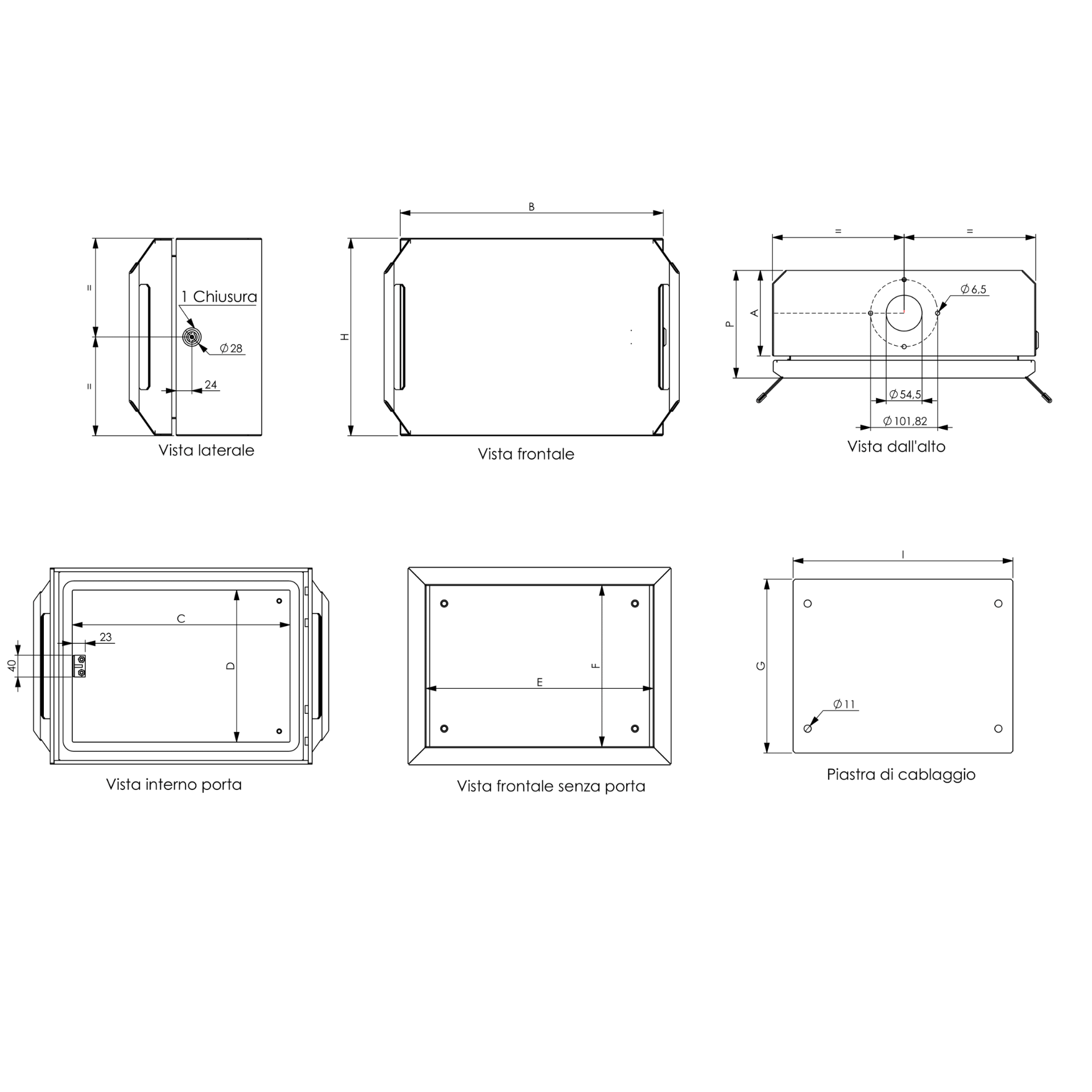

TECHNICAL SPECIFICATIONS FM/FMN D=160mm
Material: AISI 304L stainless steel 12/10 – AISI 316L stainless steel 12/10 upon request
Protection degree: IP66
Protection degree: IK10
Installation: indoor
A mounting plate made of Fe/Zn is included in the panel system’s price.

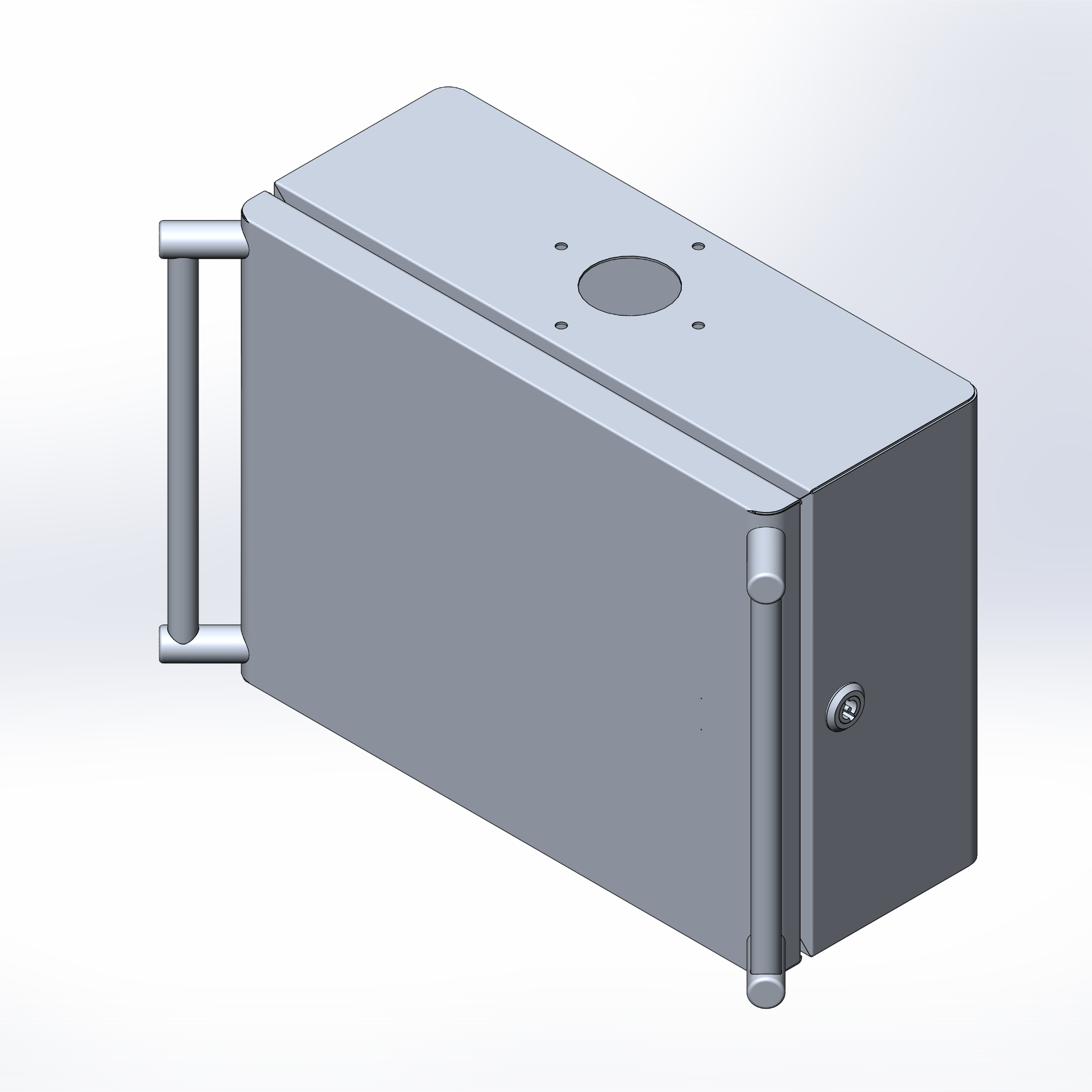

It is possible to supply our FM/FMN panel systems with doors provided with external tubular handles.
ACCESSORIES
- PIPES FOR WALL-MOUNTED SYSTEMS
- ROTATING/FIXED JOINTS

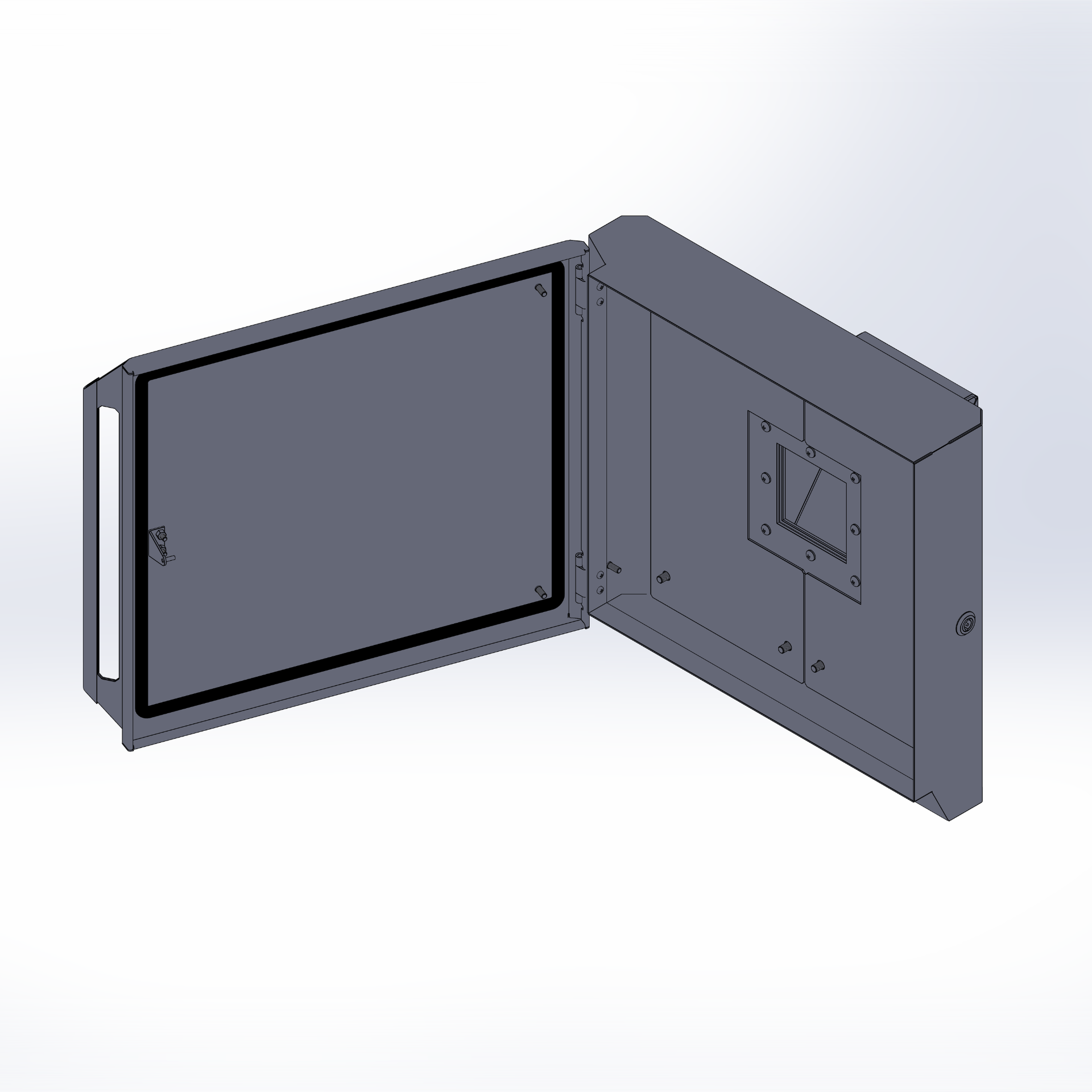

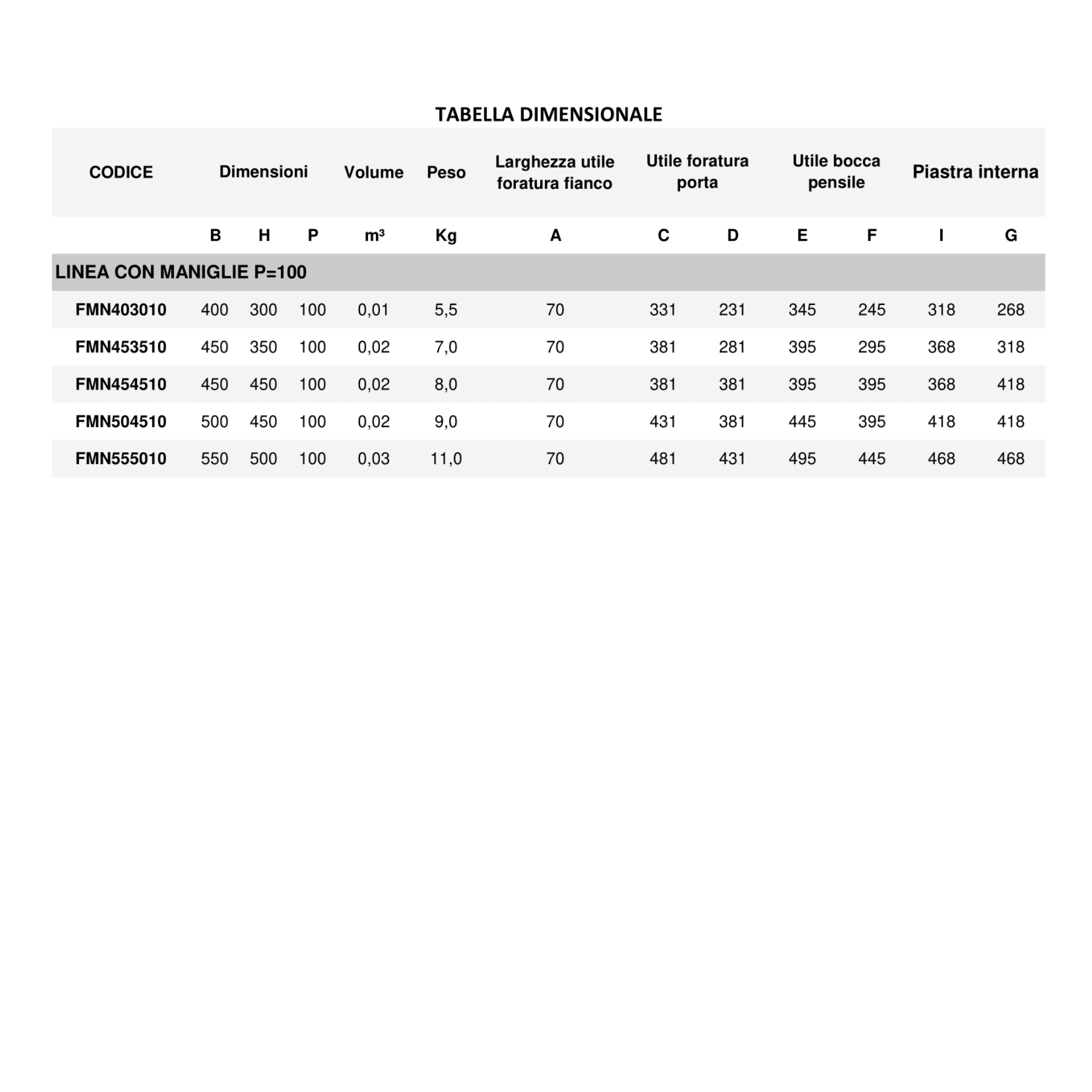

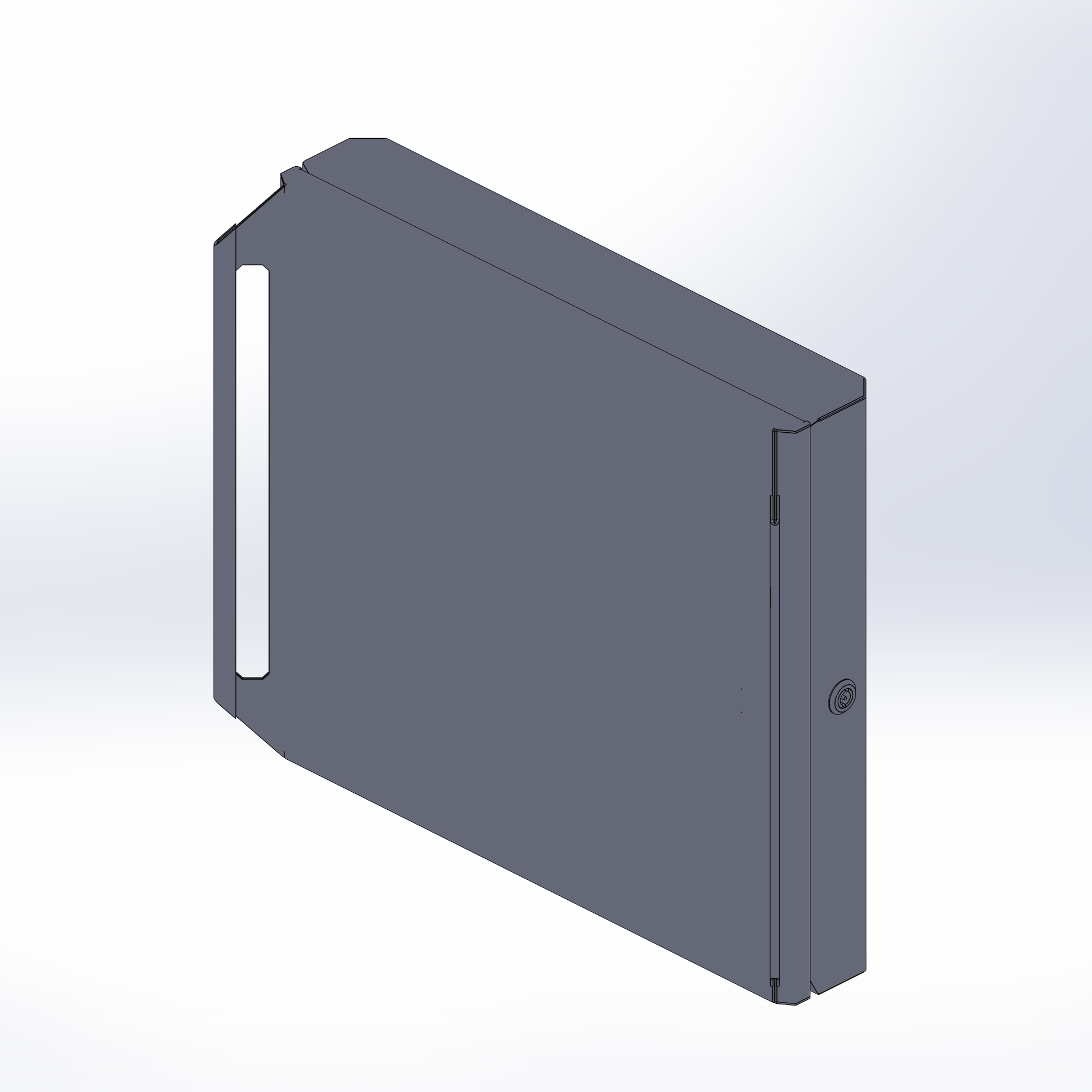

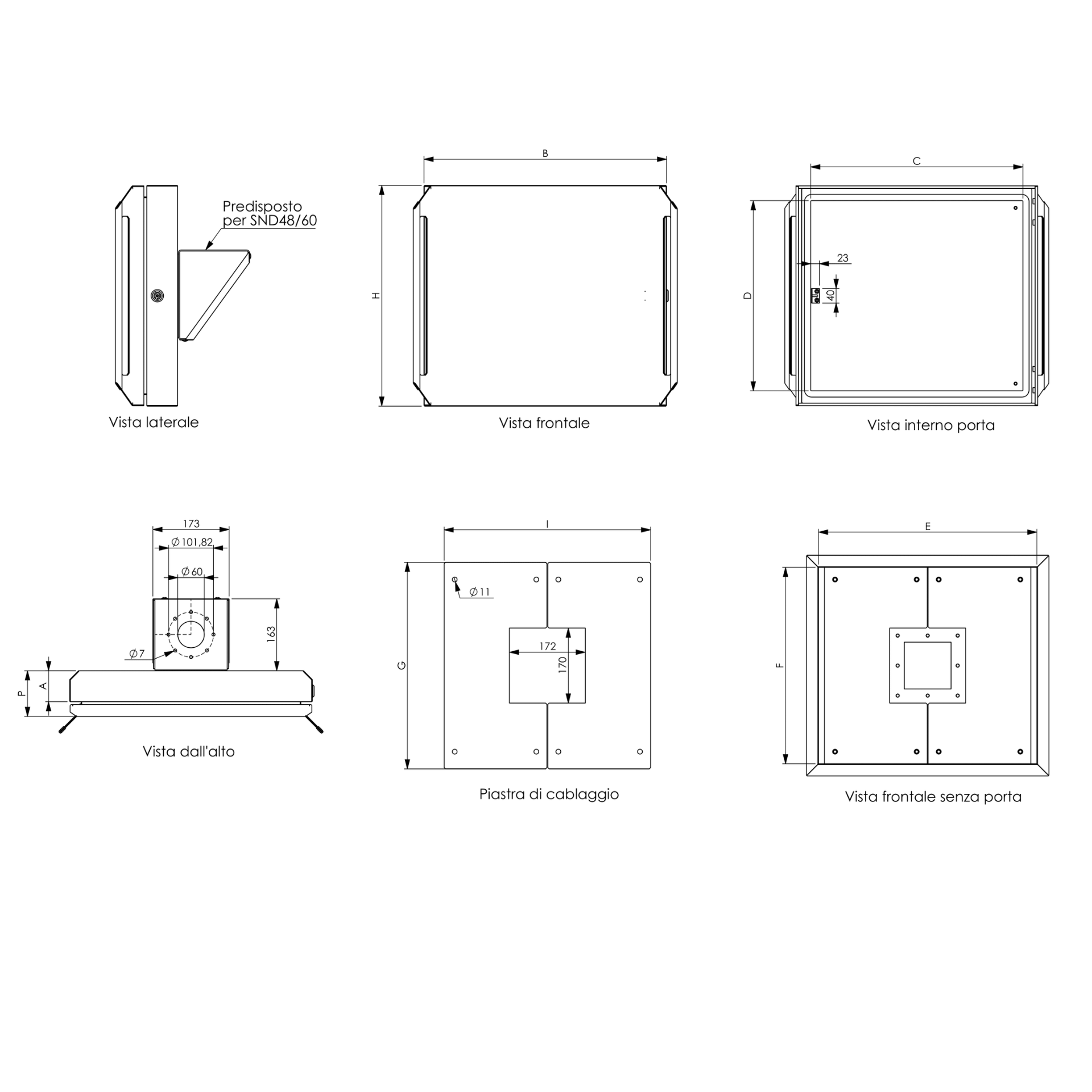

TECHNICAL SPECIFICATIONS FM/FMN D=100mm
Material: AISI 304L stainless steel 12/10 – AISI 316L stainless steel 12/10 upon request
Protection degree: IP66
Protection degree: IK10
Installation: indoor
Suspension arm fixed on the rear side to improve protection from water.
The Fe/Zn mouting plate is not included in the panel system’sprice; it must be ordered separately.
It is possible to supply our FM/FMN panel systems with doors provided with external tubular handles.
ACCESSORIES
- PIPES FOR WALL-MOUNTED SYSTEMS
- ROTATING/FIXED JOINTS
