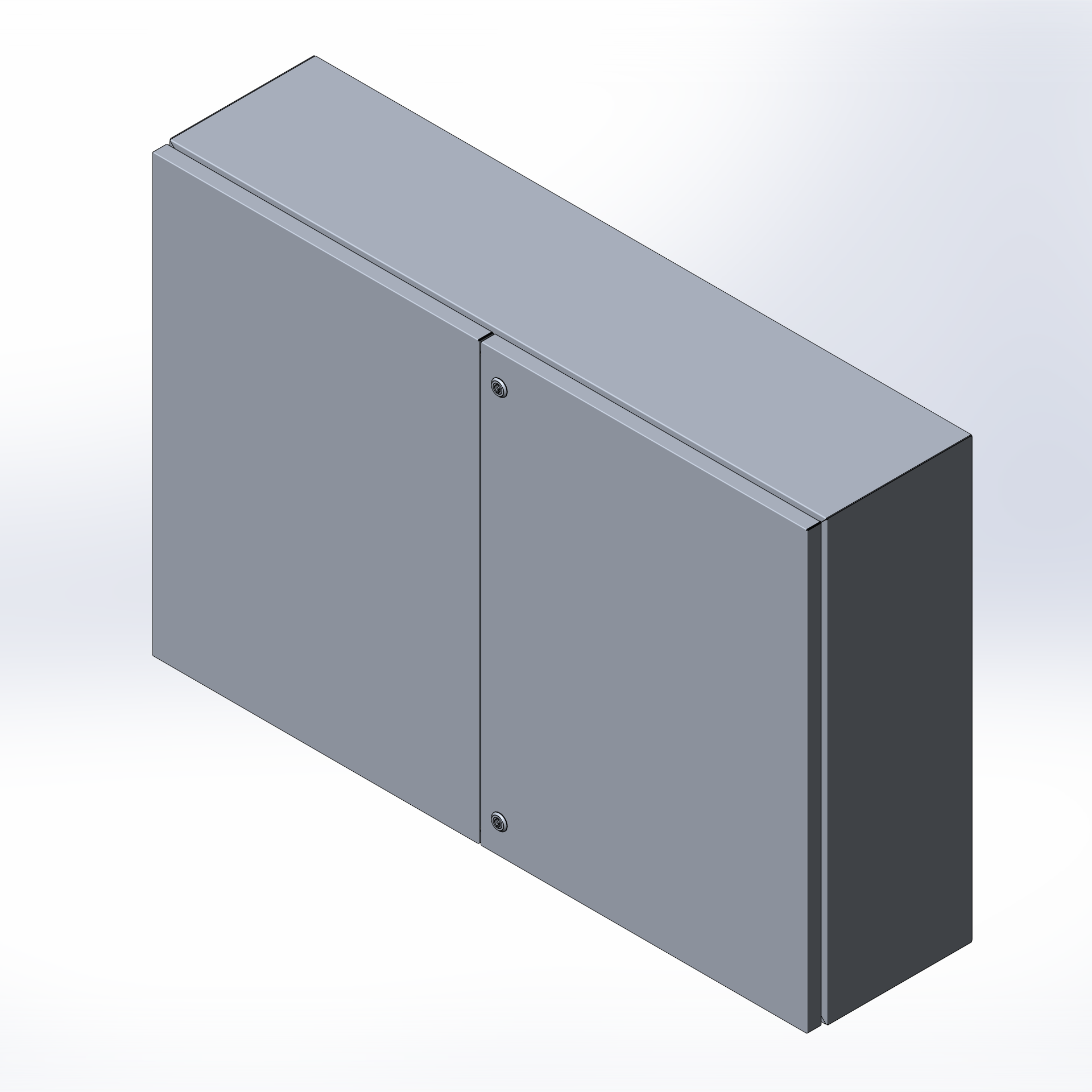

FQ - IP55 DOUBLE BLIND DOOR ENCLOSURES
The FQ range of stainless steel enclosures has been designed in compliance with the most recent international standards and according to deeply innovative constructive concepts of protection and design.
It is therefore the ideal solution for application in aggressive environments such as in the food, chemical and pharmaceutical industry, or for outdoor applications.
A transparent glass door with 3+3mm safety glass is also available upon request.
Upon request, it is possible to supply our FQ enclosures tailormade according to the costumer’s needs.
Every enclosure of the SMART range comes with a mounting plate made of Fe/Zn, included in the enclosure’s price.
TECHNICAL SPECIFICATIONS
Material: AISI 304L stainless steel 12/10 and 15/10 – AISI 316L stainless steel 12/10 and 15/10 upon request
Method of installation: floor-mounted / wall-mounted
Protection degree: IP55
UL label upon request – Nema Type 1, 12 (only where applicable)
Protection degree: IK10
Installation: indoor/outdoor
Standard polyurethane seal – silicone seal upon request
ACCESSORIES
- KCS – INTERNAL DOOR KITS
- KTM – MODULAR FRAMES
- KMA/C…H – OPEN/BLIND MODULAR PANELS
- FGS – CABLE ENTRY FLANGES
- FZQ – PLINTHS
- TPS – RAIN CANOPIES
- KMG – GAS SPRING KITS
- TS – WIRING PLAN POCKETS
- SP – WALL MOUNTING BRACKETS
- PP/PPT – PROTECTION-INSPECTION WINDOWS
