FQX / FQS SERIES IP66 ATEX ENCLOSURES
Smart series enclosures are made of stainless steel.
These components are suitable for housing electrical equipment and come in a wide range of sizes. The type of locking and seal guarantee the IP66 protection degree.
The empty enclosures are Ex components that must only be used if integrated in ATEX equipment, therefore, their compliance to the conformity standards must be granted by the entity responsible for the overall equipment supply. No product of the SMART ATEX series is provided with transparent parts. The welds are watertight and achieved via TIG welding process.
TECHNICAL SPECIFICATIONS

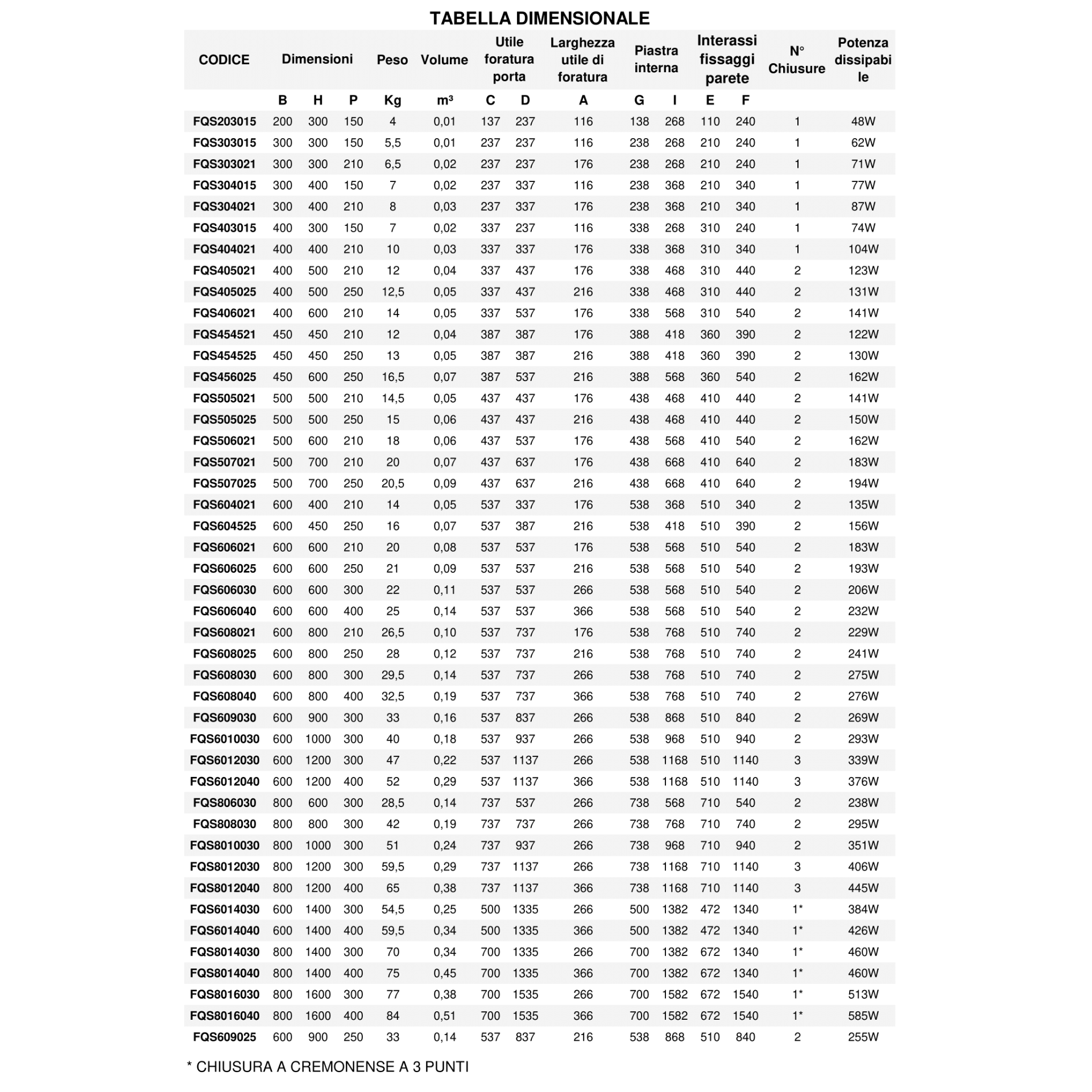

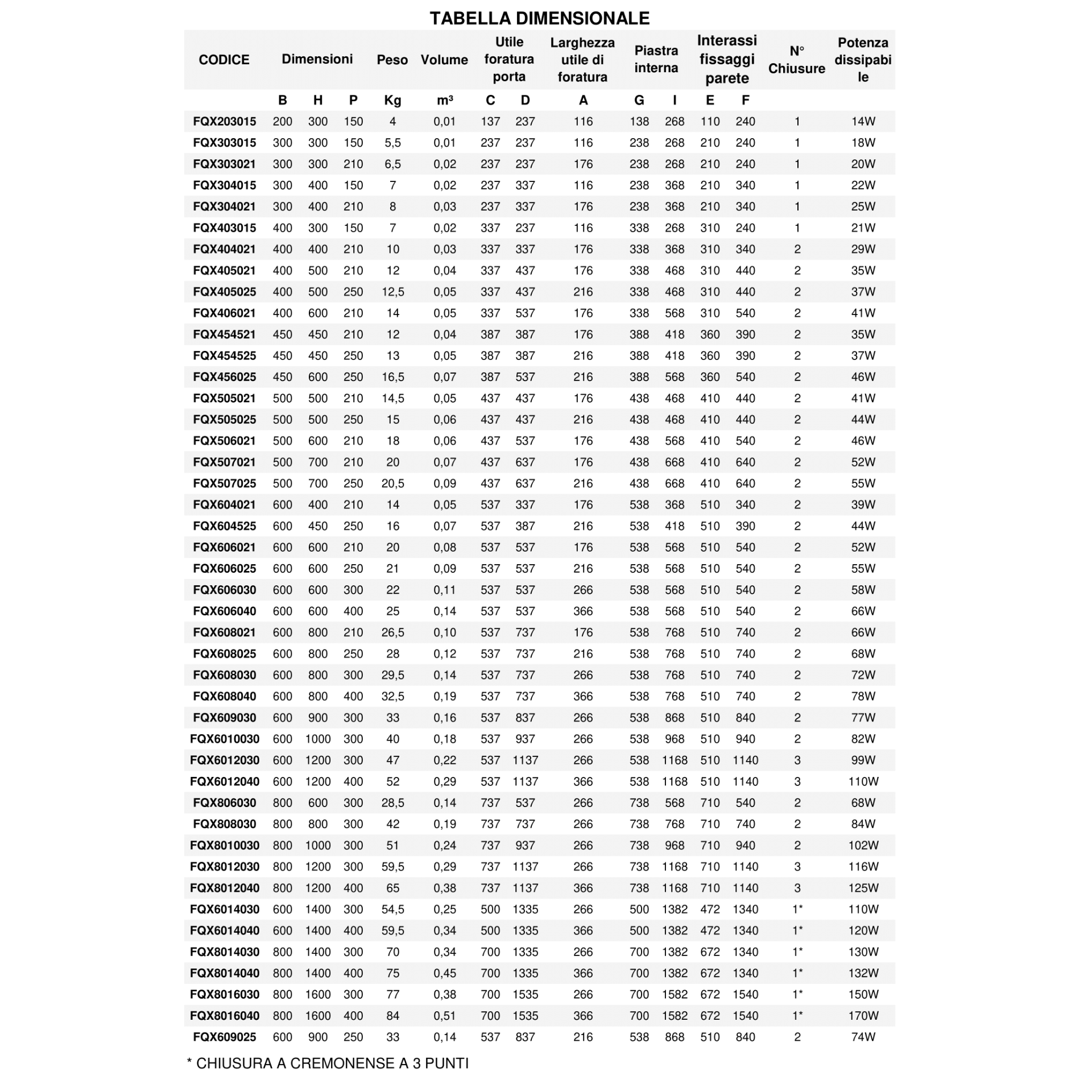

Available in 43 different sizes (see chart)
Material: AISI 304L stainless steel 12/10 and 15/10 – AISI 316L stainless steel 12/10 and 15/10 upon request
Method of installation: floor-mounted / wall-mounted
Protection degree: IP66
Protection degree: IK10
Installation: indoor/outdoor
Max and min T class: -20°C to +60°C (for codes FQX… with polyurethane seal)
Max and min T class: -40°C to +110°C (for codes FQS… with silicone seal)
Marking for applications in the area 1/21:
– II 2G Ex eIIC Gb
– II 2D Ex tb IIIC Db
ACCESSORIES
- KCS – INTERNAL DOOR KITS
- KTM – MODULAR FRAMES
- KMA/C…H – OPEN/BLIND MODULAR PANELS
- FGS – CABLE ENTRY FLANGES
- TPS – RAIN CANOPIES
- KMG – GAS SPRING KITS
- TS – WIRING PLAN POCKETS
- SP – WALL MOUNTING BRACKETS
- PP/PPT – PROTECTION-INSPECTION WINDOWS
